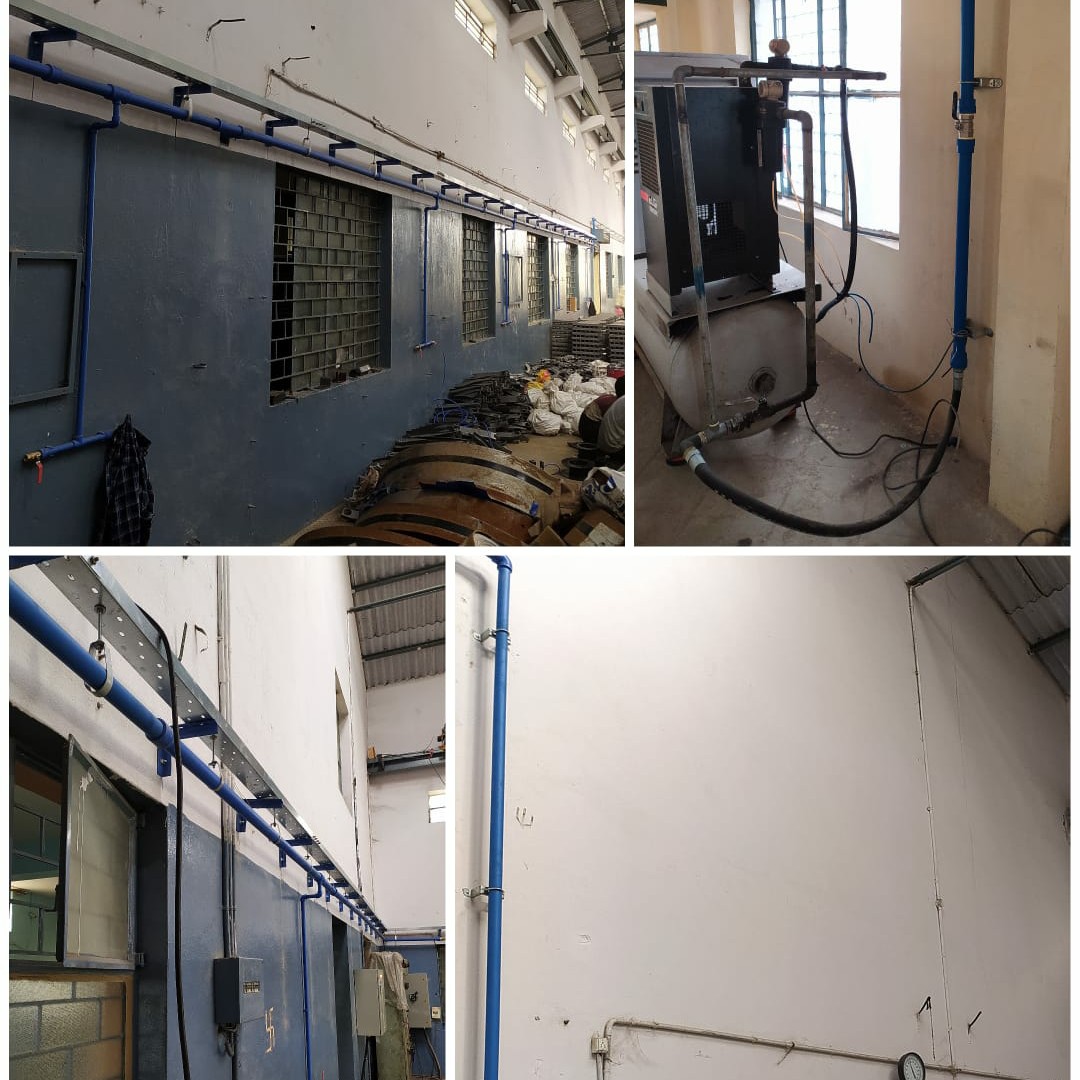

A Pneumatic Piping System is a network of pipes and fittings used to distribute compressed air from an air compressor to equipment and machines throughout a facility. It is widely used in manufacturing plants, automotive workshops, food processing, pharmaceuticals, textile mills, and packaging industries.
Key components
Air compressor
Air receiver (storage tank)
Air dryer and filters
Main piping network
Branch lines
Valves and regulators
Quick-connect couplings
Air-operated tools and pneumatic equipment
Benefits of a well-designed pneumatic piping system
Delivers clean, dry compressed air
Minimizes pressure loss
Improves energy efficiency
Reduces maintenance costs
Increases equipment reliability and service life
Allows easy system expansion
Why use PPR pipes for compressed air?
High-quality PPR piping systems designed for compressed air offer:
Corrosion-free performance
Smooth inner surface for low pressure drop
Leak-resistant heat-fused joints
Lightweight and easy installation
Long service life
Suitable for industrial compressed air distribution when the manufacturer's pressure and temperature ratings are followed.
Always use PPR pipes and fittings that are specifically approved by the manufacturer for compressed air applications, and design the system according to the required operating pressure and temperature.
